REDLINE Installation Equipment

Supplying Grade 6.0 Specialty Gases to the Delivery Point

We have a wide choice of REDLINE^® panels, outlets and accessories for centralized gas installations delivering high-purity gases and high-accuracy mixtures to the point of use

Installation Equipment to Match Your Application and Quality Needs

Our premium REDLINE portfolio includes the full range of equipment required for centralized gas distribution systems. REDLINE stretches from wall-mounted automatic switch-over gas panels to shut-off valves and furniture-mounted point-of-use regulators. All REDLINE devices are designed for use with high-purity gases up to grade 6.0 (99.9999%) and high-accuracy gas mixtures with component content at ppm/ppb level.

The majority of the products in our REDLINE range are available in chrome-plated brass as well as in stainless steel materials with welded connections to ensure that the most toxic and corrosive gases can be handled safely and with minimal risk of product contamination from atmospheric gases.

For gas purity grades up to 5.0 (99.999%) and gas mixtures with components at % level, visit our BASELINE installation equipment page.

REDLINE Installation Equipment at a Glance

REDLINE Manual Panels - Single Models

Gas panels are used in central gas supply systems to reduce the high primary pressure in the cylinders to the required secondary pressure at the point of use. All the panels in our S (for single) REDLINE series are especially suitable for non-corrosive gases up to 6.0 purity (99.9999%) as well as gas mixtures with a low concentration (ppm/ppb) of corrosive components.

These single panels handle one bank at a time, which can have one or more packages connected thanks to extension modules. When the packages connected to the bank are empty, they have to be changed out.

Read on for more details on individual models.

REDLINE^® S 60

The S 60 is a single gas panel with a diaphragm pressure regulator. It can be equipped with a contact gauge for automatic monitoring and can work at primary pressures up to 60 bar (870 psi). The outlet pressure ranges from 0.5 bar (7 psi) to 14 bar (203 psi).

REDLINE^® S 200

The S 200 is a single gas panel with a diaphragm pressure regulator. It can be equipped with a contact gauge for automatic monitoring and can work at primary pressures up to 230 bar (3,336 psi). The outlet pressure range extends from 0.5 bar (7 psi) to 200 bar (2,900 psi).

REDLINE^® S 203

This panel is equipped with a diaphragm single-stage pressure regulator and external gas purging so you can purge the high-pressure side before you disconnect cylinders. It is mounted on a stainless steel console and consists of a pressure regulator, inlet and outlet pressure gauges, a relief valve and shut-off valves for the process gas at high and low pressure ends and for the purging gas. This panel can also be equipped with a contact gauge for automatic monitoring and can work at primary pressures up to 230 bar (3,336 psi). The outlet pressure range goes from 6 bar (87 psi) to 28 bar (406 psi).

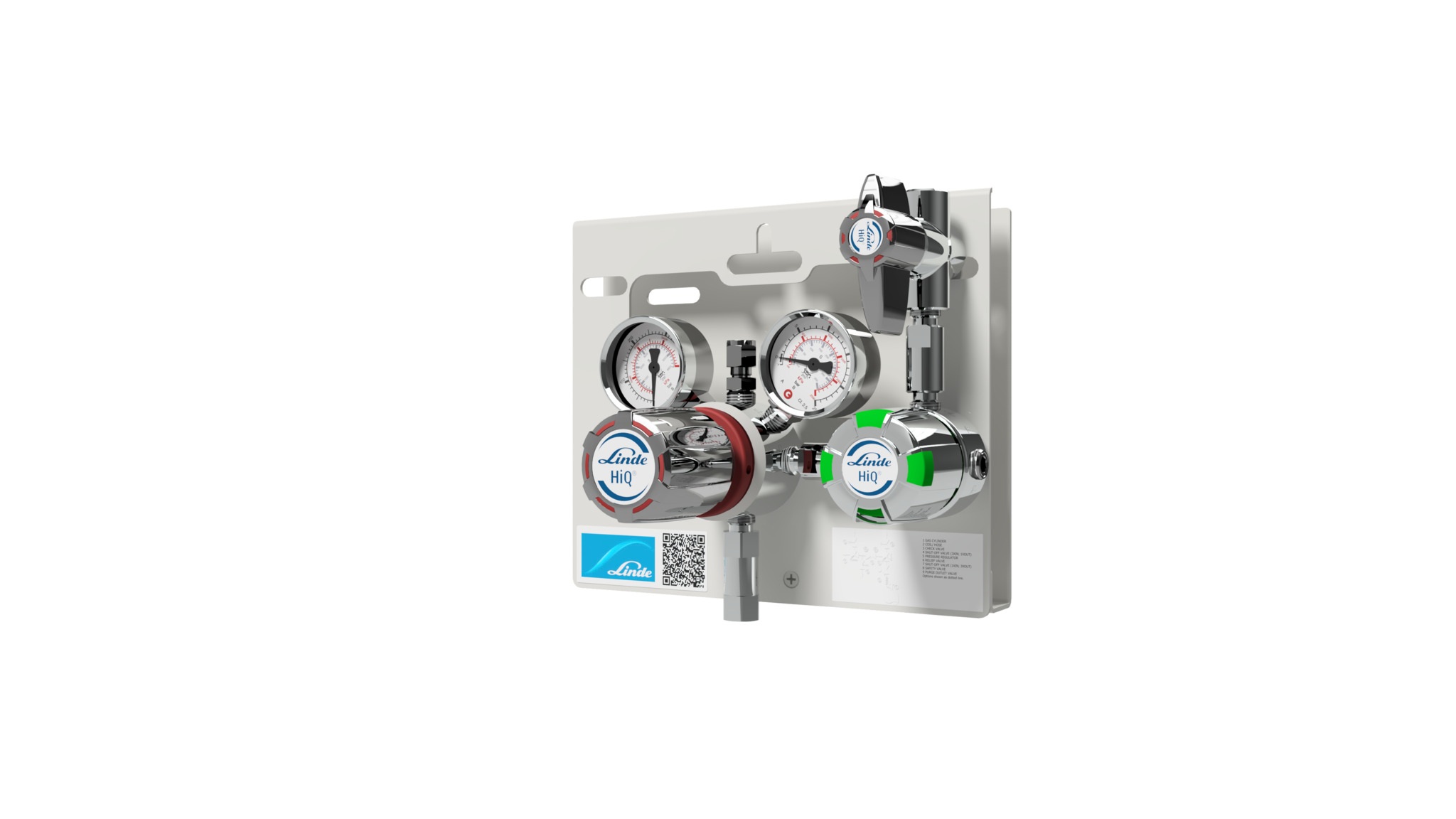

REDLINE^® S 300

The S 300 is a single gas panel with a diaphragm pressure regulator. It can be equipped with a contact gauge for automatic monitoring and can work at primary pressures of up to 300 bar (4,350 psi). The outlet pressure ranges from 0.5 bar (7 psi) to 200 bar (2,900 psi).

REDLINE Manual Panels - Double Models

Gas panels are used in central gas supply systems to reduce the high primary pressure in the cylinders to the required secondary pressure at the point of use. All the panels in our D (for double) REDLINE series are especially suitable for non-corrosive gases up to 6.0 purity (99.9999%) as well as gas mixtures with a low concentration (ppm/ppb) of corrosive components.

These double panels handle two banks at a time. Similar to single panels, one or more packages can also be connected to each bank. When the packages on the active side are empty, the operator switches over manually to the other bank, and the full cylinder(s) or bundle(s) connected on that side maintain delivery.

Read on for more details on individual models.

REDLINE^® D 60

The D 60 is a double gas panel with a diaphragm single-stage pressure regulator. The gas supply is uninterrupted during cylinder changes with the operator switching between banks manually. This panel can be equipped with a contact gauge for automatic monitoring and can work at primary pressures up to 60 bar (870 psi). The outlet pressure range extends from 0.5 bar (7 psi) to 14 bar (203 psi).

REDLINE^® D 200

The D 200 is a double gas panel with a diaphragm single-stage pressure regulator. The gas supply is uninterrupted during cylinder changes with the operator switching between banks manually. This panel can be equipped with a contact gauge for automatic monitoring and can work at primary pressures up to 230 bar (3,336 psi). The outlet pressure range goes from 0.5 bar (7 psi) to 200 bar (2,900 psi).

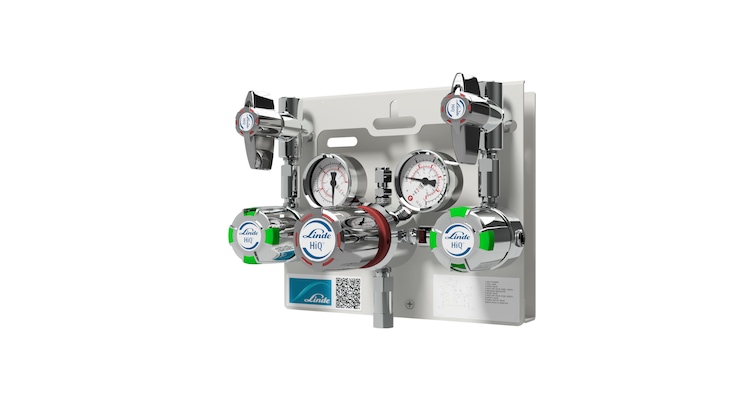

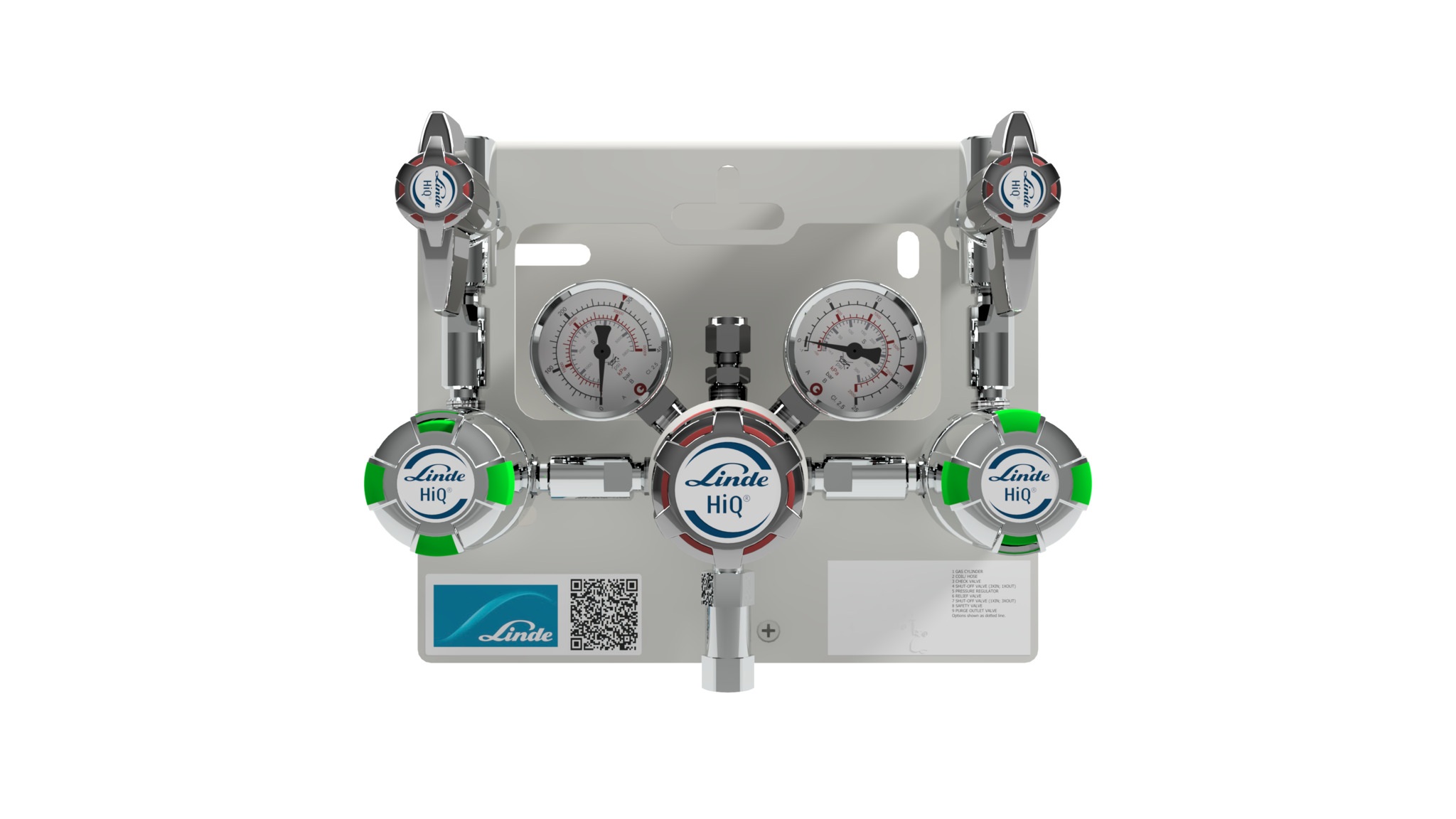

REDLINE^® D 300

The D 300 double gas panel comes with a diaphragm single-stage pressure regulator. The gas supply is uninterrupted during cylinder changes with the operator switching between banks manually. This panel can be equipped with a contact gauge for automatic monitoring and can work at primary pressures up to 300 bar (4,350 psi). The outlet pressure ranges from 0.5 bar (7 psi) to 200 bar (2,900 psi).

REDLINE Semi-automatic Panels

Like manual panels, semi-automatic gas panels reduce the high primary pressure at the source to the required secondary pressure at the point of use. All the panels in our REDLINE A series are especially suitable for non-corrosive gases up to 6.0 purity (99.9999%) as well as gas mixtures with a low concentration (ppm/ppb) of corrosive components.

Semi-automatic panels handle two banks at a time, with one or more packages connected to each bank thanks to extension modules. When the pressure on the active side reaches a preset value, the manifold automatically switches over to the other side, where full packages are ready for use. This means the operator can change the empty gas cylinders without interrupting the gas flow.

Read on for more details on individual models.

REDLINE^® A 60

The A 60 is a double gas panel with a diaphragm single-stage pressure regulator. It is a semi-automatic gas panel designed for uninterrupted gas supply thanks to the automatic switchover. This panel can be equipped with a contact gauge for automatic monitoring and can work at primary pressures up to 60 bar (870 psi). The outlet pressure ranges from 14 bar (203 psi) to 50 bar (725 psi).

REDLINE^® A 200

The A 200 is a double gas panel with a diaphragm single-stage pressure regulator. It is a semi-automatic gas panel designed for uninterrupted gas supply thanks to the automatic switchover. This panel can be equipped with a contact gauge for automatic monitoring and can work at primary pressures up to 230 bar (3,336 psi). The outlet pressure range goes from 14 bar (203 psi) to 50 bar (725 psi).

REDLINE^® A 209

This double gas panel with a diaphragm single-stage pressure regulator is a semi-automatic gas panel designed for uninterrupted gas supply thanks to the automatic switchover. The main difference relative to the A 200 panel is that this model is equipped with a purge inlet valve on both sides. This panel can also be equipped with a contact gauge for automatic monitoring and can work at primary pressures up to 230 bar (3,336) with an outlet pressure range from 14 bar (203 psi) to 50 bar (725 psi).

REDLINE^® A 300

The A 300 is a double gas panel with a diaphragm single-stage pressure regulator. This semi-automatic gas panel delivers uninterrupted gas supply thanks to the automatic switchover. This panel can be equipped with a contact gauge for automatic monitoring and can work at primary pressures up to 300 bar (4,350 psi). The outlet pressure range extends from 14 bar (203 psi) to 50 bar (725 psi).

REDLINE Outlets / POUs

The point of use (POU) is the second stage of a central gas supply system. All of our REDLINE POUs are especially suitable for non-corrosive gases up to 6.0 purity (99.9999%) as well as gas mixtures with a low concentration (ppm/ppb) of corrosive components.

Combined with manual or semi-automatic gas manifold, POUs create a very stable outlet pressure, handling any pressure changes due to fluctuations between the secondary and primary side. Our REDLINE system is modular, so you are free to design your gas installation to better fit your specific needs. Each POU can be individually equipped or stripped of functions such as "shut-off", "pressure regulation" and "flow regulation".

Read on for more details on individual models.

REDLINE^® B 40

The B 40 POU is designed for bench installations. It can be equipped as a shut-off valve (type A), as a regulator with a shut-off valve (type B) or as a regulator with a shut-off and control valve (type C). The maximum primary pressure is 40 bar (580 psi).

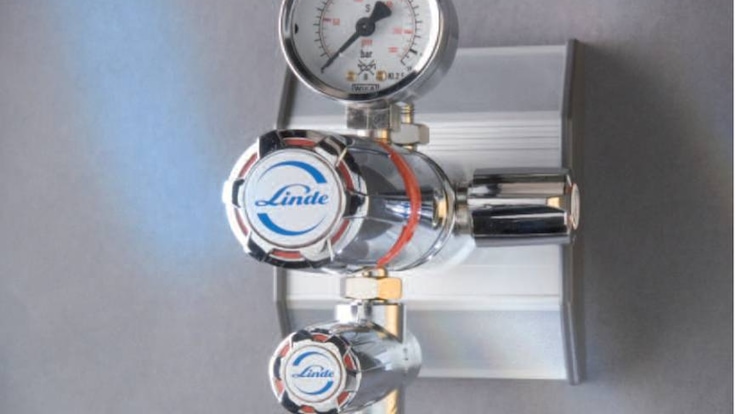

REDLINE^® W 40

The W 40 POU is designed for wall installations. It can be equipped as a shut-off valve (type A), as a regulator with a shut-off valve (type B) or as a regulator with a shut-off and control valve (type C). The maximum primary pressure is 40 bar (580 psi).

REDLINE^® W 50

The W 50 POU is a diaphragm single-stage pressure regulator designed for wall installations. It is equipped with a shut-off valve and detachable connection between the pre-shut-off and pressure regulator. The maximum primary pressure is 50 bar (725 psi) and the outlet pressure ranges from 0.1 bar (1.5 psi) to 10 bar (145 psi).

REDLINE^® L 40

L 40 is a POU pressure regulator designed for wall installations. It can be equipped as a shut-off valve (type A), as a regulator with a shut-off valve (type B) or as a regulator with a shut-off and control valve (type C). The maximum primary pressure is 40 bar (580 psi).

REDLINE Inline Pressure Regulators

We offer a wide range of precision-engineered inline pressure regulators that give you all the flexibility you need to tailor your centralized gas supply systems to your requirements. All our REDLINE inline regulators are especially suitable for non-corrosive gases up to 6.0 purity (99.9999%) as well as gas mixtures with a low concentration (ppm/ppb) of corrosive components.

Read on for more details on individual models.

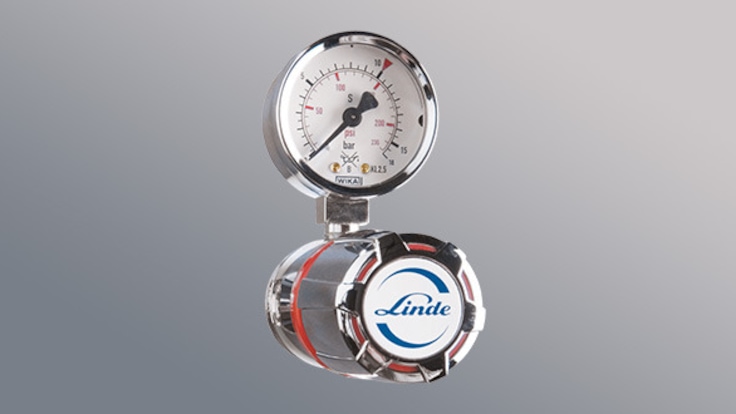

REDLINE^® R 40/1

R 40/1 is a point-of-use (POU) pressure regulator. The maximum primary pressure is 40 bar (580 psi) and the outlet pressure ranges from 0.1 bar (1.5 psi) to 10.5 bar (152 psi).

REDLINE^® R 200/1

This regulator is an inline single-stage diaphragm pressure regulator. The maximum primary pressure is 230 bar (3,336 psi) and the outlet pressure range extends from 0.2 bar (3 psi) to 200 bar (2,900 psi).

REDLINE^® R 200/2

This regulator is an inline two-stage diaphragm pressure regulator. The maximum primary pressure is 230 bar (3,336 psi) and the outlet pressure range goes from 0.2 bar (3 psi) to 14 bar (203 psi).

REDLINE^® R 300/1

R 300/1 is an inline single-stage diaphragm pressure regulator. The maximum primary pressure is 300 bar (4,350 psi) and the outlet pressure range runs from 0.2 bar (3 psi) to 50 bar (725 psi).

REDLINE^® R 300/2

This regulator is an inline two-stage diaphragm pressure regulator. The maximum primary pressure is 300 bar (4,350 psi) and the outlet pressure ranges from 0.2 bar (3 psi) to 14 bar (203 psi).

REDLINE^® R 500/1

R 500/1 is an inline single-stage diaphragm pressure regulator. The maximum primary pressure is 40 bar (580 psi) and the outlet pressure range is from 0.2 bar (3 psi) to 14 bar (203 psi).

REDLINE^® R 545

This model is an inline single-stage diaphragm pressure regulator. The maximum primary pressure is 12 bar (174 psi) or 40 bar (580 psi) and the outlet pressure ranges from 20 mbar (0.29 psi) to 3,000 mbar (43.5 psi).

REDLINE Accessories

We offer a wide range of precision-engineered accessories that give you all the flexibility you need to better align your centralized gas supply systems with your requirements. All of our REDLINE accessories are especially suitable for non-corrosive gases up to 6.0 purity (99.9999%) as well as gas mixtures with a low concentration (ppm/ppb) of corrosive components.

Read on for more details on individual models.

REDLINE^® V 40

The V 40 is a diaphragm control valve. It is available as an angle valve (type BE) or straight-way valve (type SE). The maximum working pressure is 40 bar (580 psi).

REDLINE^® V 50

The V 50 is a diaphragm control valve. It is available as an angle valve (type BE) or straight-way valve (type SE). The maximum working pressure is 50 bar (725 psi) and 40 bar (580 psi) for oxygen.

REDLINE^® V 200

The V 200 is a diaphragm shut-off valve with a position indicator and click function. The maximum working pressure is 200 bar (2,900 psi).

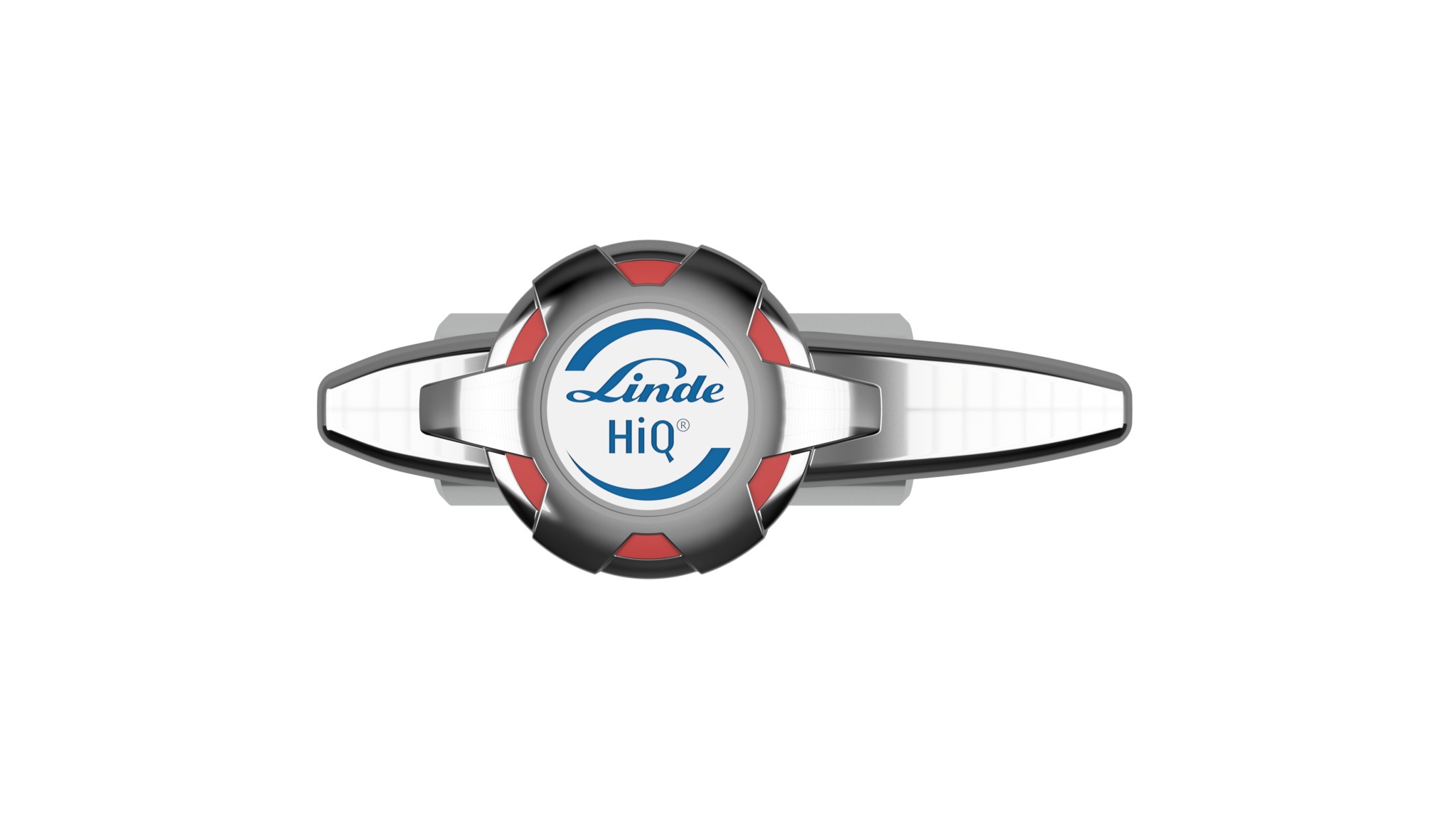

REDLINE^® V 300

The V 300 is a diaphragm shut-off valve with a position indicator and click function. The maximum working pressure is 300 bar (4,350 psi).

REDLINE^® V 300/4

This model is a diaphragm shut-off valve with a position indicator and click function. The V 300/4 is available in the variant 3I1O (three inputs and one output) or 1I3O (one input and three outputs). The maximum working pressure is 300 bar (4,350 psi).

REDLINE^® E 60

The E 60 is an extension solution that expands pressure control panels from 2 to max. 4 connections per side (one extension per additional package). It is available in two versions - one connecting on the left side and one on the right side of the panel. It can work at up to 60 bar (870 psi).

REDLINE^® E 200

The E 200 is an extension solution that expands pressure control panels from 2 to max. 4 connections per side (one extension per additional package). It is available in two versions - one connecting on the left side and one on the right side of the panel. It can work at up to 200 bar (2,900 psi).

REDLINE^® E 300

The E 300 is an extension solution that expands pressure control panels from 2 to max. 4 connections per side (one extension per additional package). It is available in two versions - one connecting on the left side and one on the right side of the panel. It can work at up to 300 bar (4,350 psi).

REDLINE High-pressure Coils and Hoses

High-pressure coils and hoses are used to connect the cylinder or bundle to the gas panel. Inlet check valves and/or inlet shut-off valves can be fitted on the inlet side of the panel. High-pressure coils are suitable for panels with one inlet connection. High-pressure hoses are ideal for one or multiple connections on panels and high-pressure connecting manifolds. We offer both coils and hoses in two versions that support a maximum working pressure of either 230 bar (3,336 psi) or 300 bar (4,350 psi).

REDLINE Fitting Outlets and Cylinder Inlets

Several options are available to meet all your requirements. Contact your local Linde representative for details.
