SOLVOX Cone Pressure Dissolver

Setting New Benchmarks for Energy and Oxygen Efficiency

A number of design optimizations and matching booster and mixer accessories make the SOLVOX^® Cone pressure dissolver the most energy - and oxygen-efficient model on the market for freshwater.

Oxygenation System for Freshwater Fish Offering Unmatched Efficiency

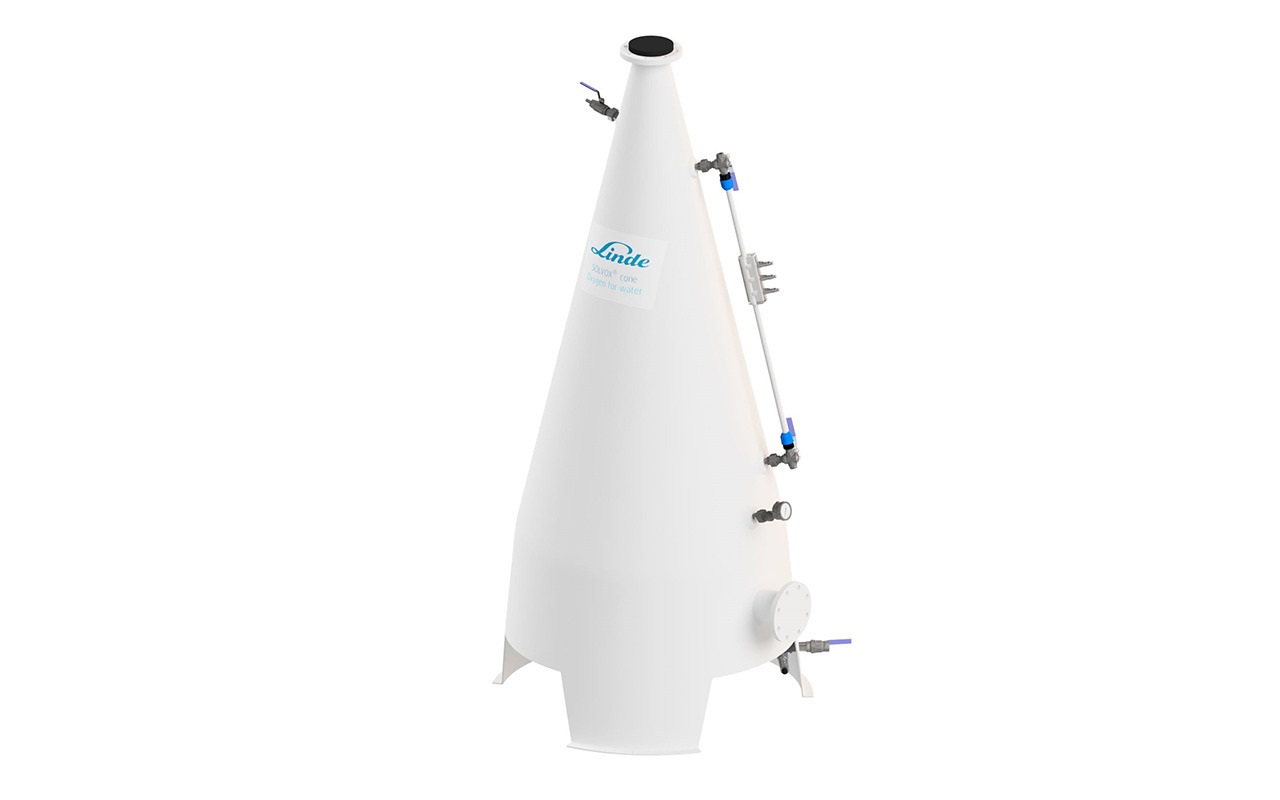

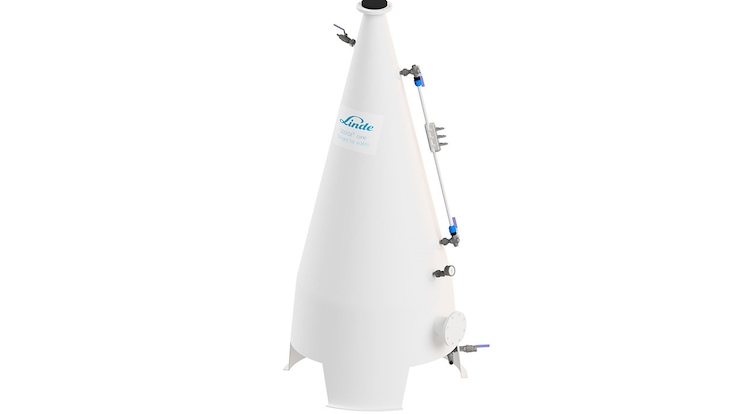

SOLVOX Cone is a pressure dissolver specifically for the oxygenation of freshwater. Various innovative and proprietary design features enable transfer efficiency rates close to 100%. Engineered to increase the concentration of oxygen in water, it is made from corrosion-resistant glass-fiber-reinforced plastic (GRP) with high-quality stainless-steel fittings. These make SOLVOX Cone also suited to seawater.

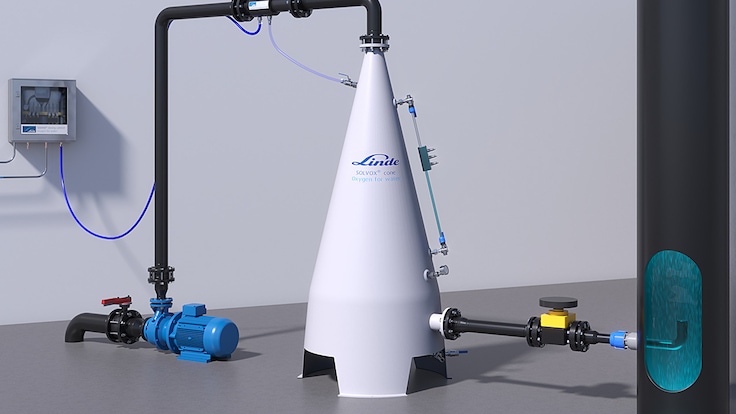

As water and gas enter SOLVOX Cone from the top, the water jet forces the water to mix intensively with the oxygen bubbles. Flowing downwards, the water velocity decreases as the cone diameter widens. Small gas bubbles that are not fully dissolved can rise in the cone against the downward water flow and only water free from gas leaves the cone at the bottom. Since SOLVOX Cone is operated at elevated pressure, the dissolved oxygen concentration can be increased significantly above normal saturation levels.

Read on to see how you can boost the performance of SOLVOX Cone and increase energy efficiency even further with our SOLVOX^® Cone Booster and SOLVOX^® Cone mixer solutions. Complementary offerings include SOLVOX^® Dosing Cabinet, SOLVOX^® Streamline and SOLVOX^® Oxystream. Talk to our experts for installation advice and system integration support.

SOLVOX Cone Highlights at a Glance

Oxygen transfer efficiency rates close to 100%.
Ability to increase oxygen saturation well above the normal level.
High oxygen dissolution capacity.
Pressure range allows significant reduction in energy demand relative to low-pressure cones.
Suited to freshwater and seawater.

SOLVOX Cone Accessories

SOLVOX Cone Booster

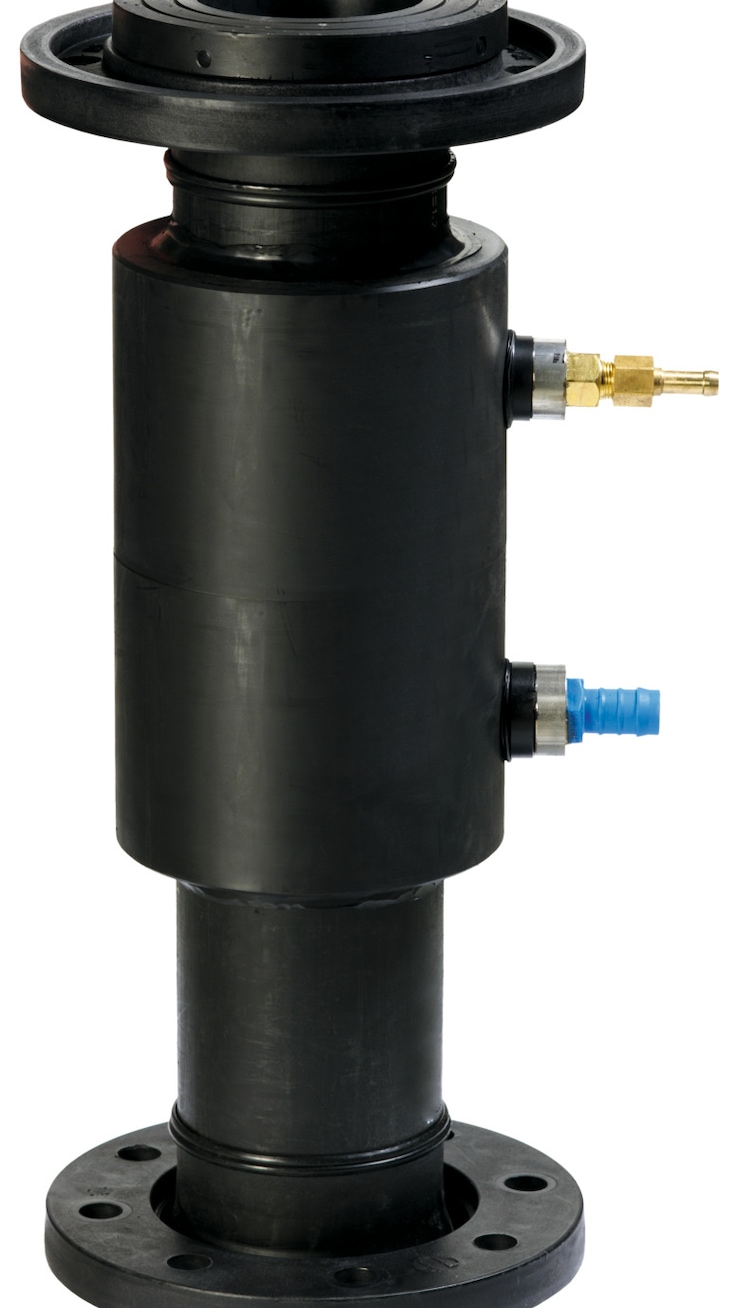

The SOLVOX^® Cone Booster is a proprietary venturi nozzle which increases the oxygen-dosing capacity by up to 50%. Undissolved oxygen which accumulates in the headspace of the cone is recirculated to the booster and mixed into the water flow a second time. This keeps the gas cushion in the headspace low and more water can be run through SOLVOX Cone.

Highlights of SOLVOX Cone Booster

Oxygen-dosing capacity increased by up to 50%
No increase in water flow rate or energy consumption.
Specific energy consumption per kg of oxygen dissolved is reduced.
Can be installed during live operations.

SOLVOX Cone Mixer

The SOLVOX^® Cone Mixer is a specially adapted unit for use in combination with our SOLVOX^® Cone pressure dissolver. It returns pressurized, highly oxygenated water from SOLVOX Cone to a low-pressure water flow without the risk of degassing or compromising efficiency. The SOLVOX Cone mixer is specially adapted to each project and can be installed for each individual tank or in a main water supply line for base oxygenation.

Highlights of the SOLVOX Cone Mixer

Ideal complement to SOLVOX Cone, creating a complete oxygenation solution.
No risk of degassing.
Greater overall oxygenation efficiency.

SOLVOX^® Dosing Cabinet

Control your O₂ flow more precisely while adapting to changes in O₂ needs and operating state.

SOLVOX^® Streamline

Improve fish wellbeing through enhanced hydraulics offering a better tank environment.

SOLVOX^® Oxystream

Check out our all-in-one low-pressure oxygenation solution with improved tank hydraulics.

Any questions?

Contact our team to see how you too can take efficiency to the next level with our SOLVOX cone pressure dissolver.
