State-of-the-art Gas Pressure Boosting Technology

Boost Your Industrial Processes

Our PRESUS^® gas pressure boosting solutions for N₂and CO₂ are a cost-effective, energy-efficient alternative to conventional compressors for countless applications from injection molding to cryogenic cleaning

Success Under Pressure with PRESUS

Many industrial applications rely on a steady supply of high-pressure carbon dioxide (CO₂) or nitrogen (N₂). Typical examples include plastic foaming, gas (assisted) injection molding, hot-spot cooling of injection molds, laser-beam cutting, cryogenic cleaning and cooling during thermal spraying.

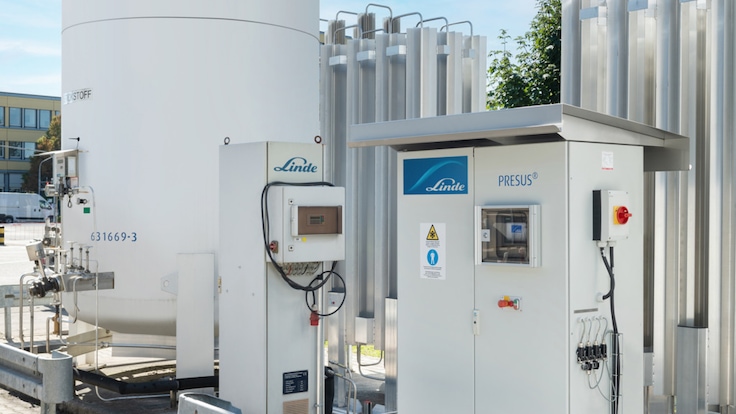

We developed our PRESUS^® family of pressure boosting devices to deliver CO₂, N₂ or even argon (Ar) to these and similar applications. These modern, cost-effective and energy-efficient units are delivered as part of an all-inclusive solution spanning the gas bulk tank, the PRESUS high-pressure boosting pump, high pressure vaporizer, a high-pressure pipeline as well as a high-pressure temperature control solution to keep the gas well within the defined limits at the point of use.

The PRESUS^® C unit is suited to applications that run on CO₂ whereas PRESUS^® N is tailored to use cases that require N₂ or Ar. Both are available with models to suit individual pressure, volume, mass flow and footprint requirements. Click below for more details.

Gas Pressure Booster Family

PRESUS C

Designed for the highest standards of quality and reliability, PRESUS C supplies carbon dioxide at a high mass flow and constant pressure in a virtually bubble-free state to a variety of industrial processes. Redundant pumps and pneumatic operation make these boosters extremely reliable. During service or maintenance windows, the CO₂ is supplied from the backup unit to ensure process continuity. Operators can switch between the main and backup units automatically by means of a PLC. The PRESUS C configuration offers cost efficiency gains over ring pipe solutions and dual tank (low and high pressure) setups. Different family members support different pressure ratings, scaling up to a working pressure of 130 bar and a mass flow of up to 500 kg/hr. A special high-pressure PRESUS C unit supporting a working pressure of up to 400 bar is also available for specific applications such as gas injection molding with PLASTINUM^® GIM C.

Highlights of PRESUS C

Reliable and continuous supply of CO₂ at high pressure
Avoidance of bubbles that can otherwise occur in the CO₂ and compromise production and cause increased downtimes and scrap rates
Lower energy consumption due to pneumatic (pressure-triggered) drive concept and idle mode, making PRESUS C ideal for intermittent operations
More convenience and flexibility as mass flow adapts automatically to changes in counter-pressure

PRESUS N

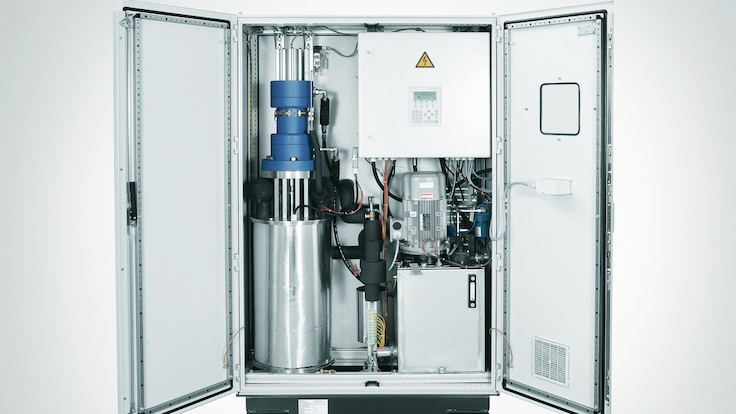

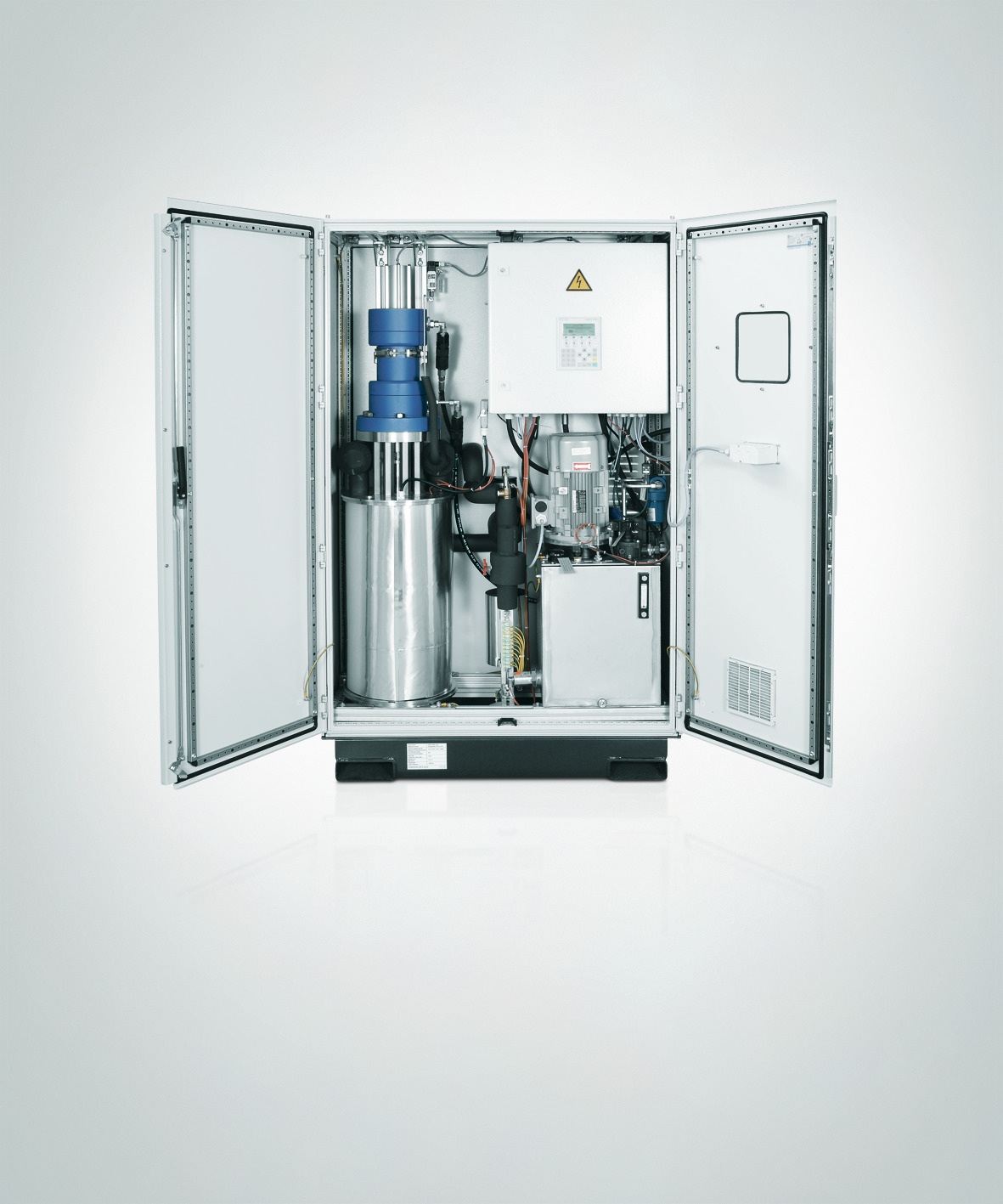

PRESUS N uses a hydraulically operated, slow-moving piston to pressurize liquid nitrogen or argon to anywhere up to 340 bar depending on application requirements. Supporting N₂ flow rates from 5 – 130 m³/h, PRESUS delivers oil-free N₂ in the purity grade specified and vaporized. Requiring only a small footprint compared with state-of-the-art gas compression units for the same capacity and pressure, it comes with a small gas buffer and is installed outdoors.

Highlights of PRESUS N

Low energy consumption - up to 90% lower than that required by state-of-the-art gas compression units
Flow rate at least five times higher than that of state-of-the-art gas compressors
Oil-free operation, thus avoiding the gas purity degradation associated with gas compressors
Ease of operation with automatic PLC control system

Discover PRESUS in Action

Boosting with Nitrogen

Boosting with Carbon Dioxide

Which PRESUS is right for you?

Contact our expert team and discover how a steady supply of high-pressure liquid carbon dioxide or liquid nitrogen could bring you quality and cost gains.
